We've learned a lot about the application we are to build, let's use this knowledge to design our application's architecture.

Design the Architecture

Architecture Design

Based on the functionality we've captured, we'll need a few components:

Spring Boot app -- The backend of our application, exposing a REST API
React App -- The frontend of our application, which calls the REST API
Keycloak -- Our auth server, handling authentication and authorization

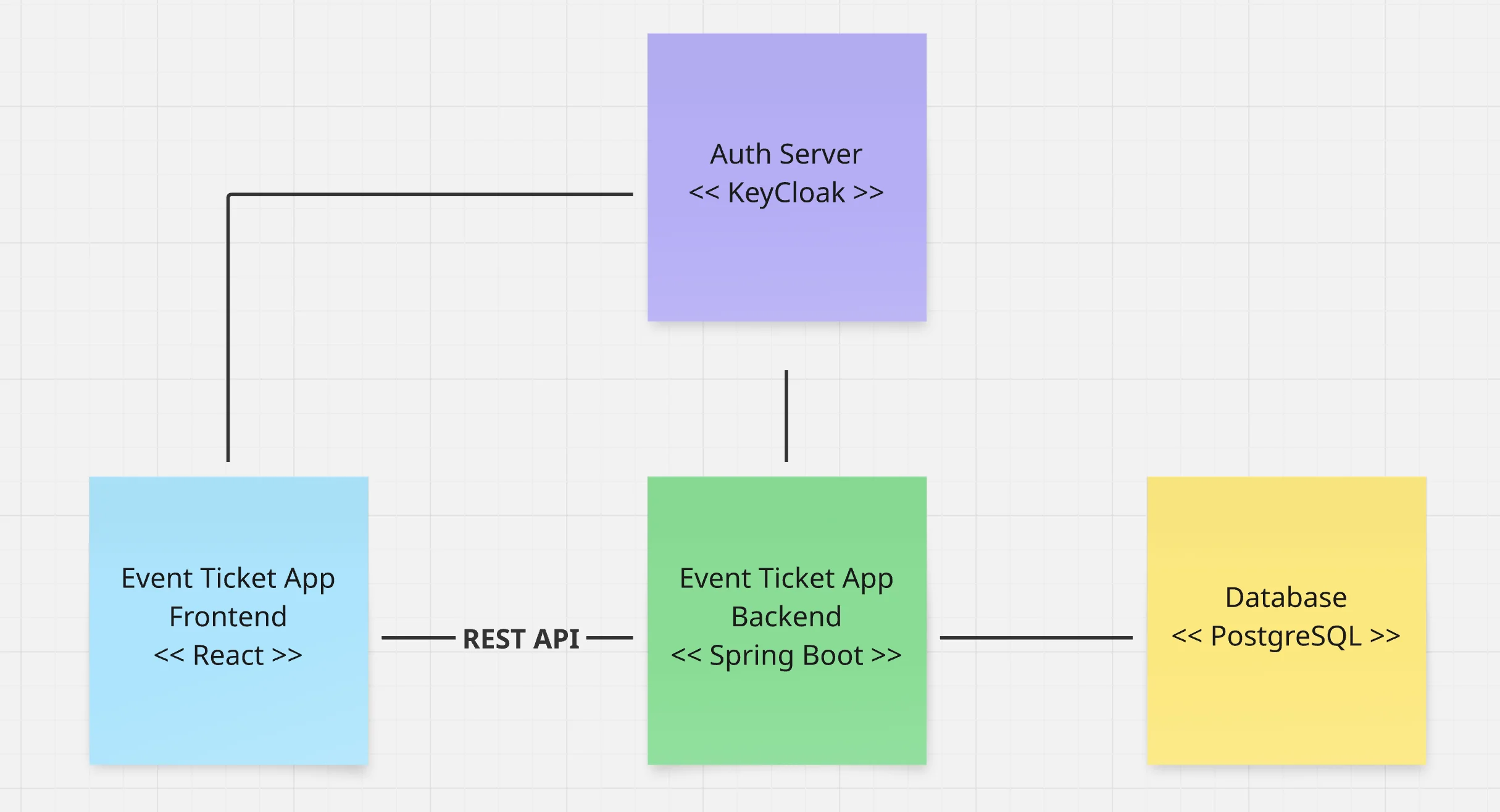

Here's the mermaid diagram:

flowchart LR
    A[Event Ticket App</br>Frontend</br><< React >>]
    B[Event Ticket App</br>Backend</br><< Spring Boot >>]
    C[Database</br><< PostgreSQL >>]
    A --- B
    B --- C

Summary

Our architecture includes a Spring Boot backend, React frontend, PostgreSQL database, and a Keycloak server
